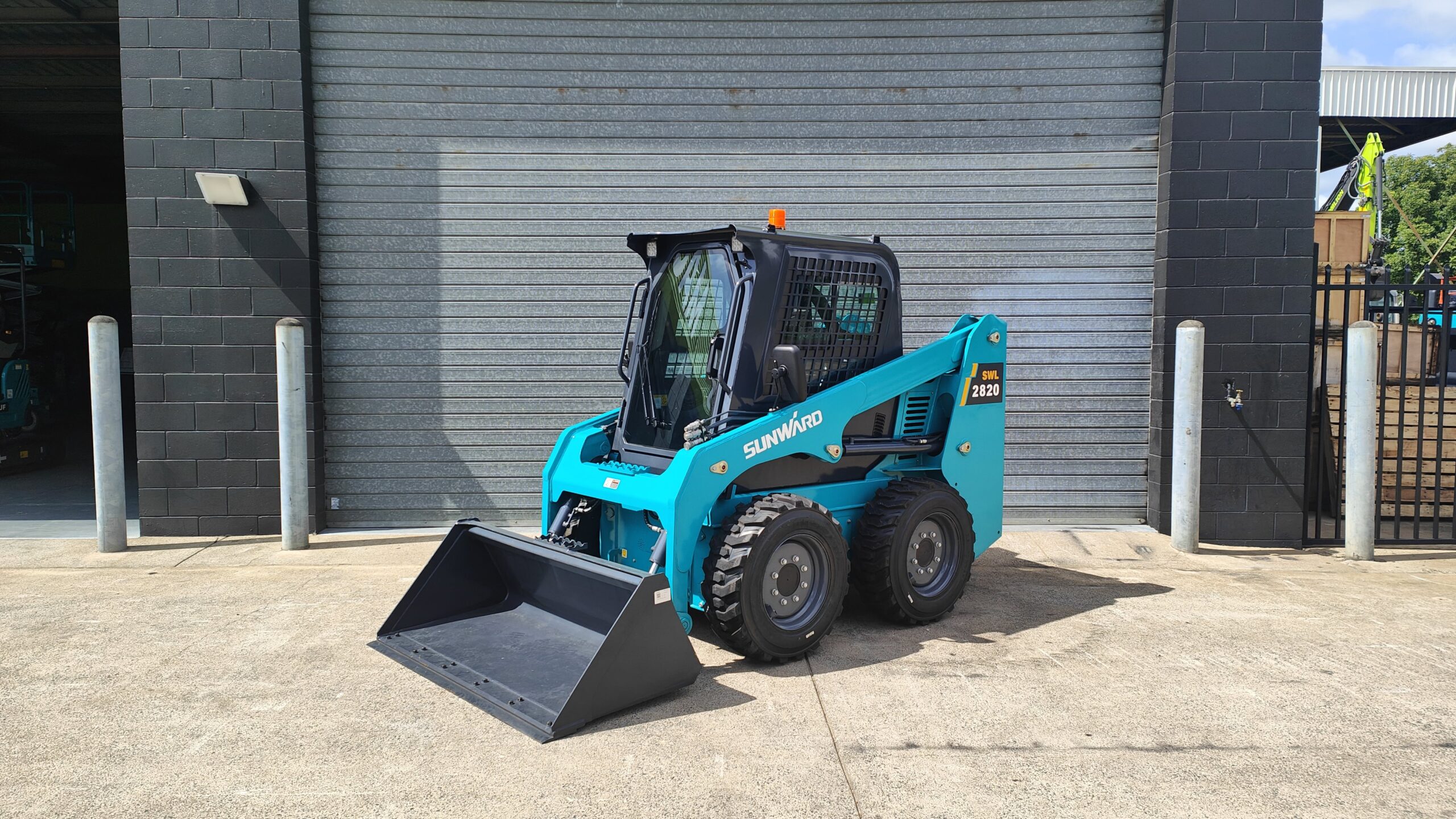

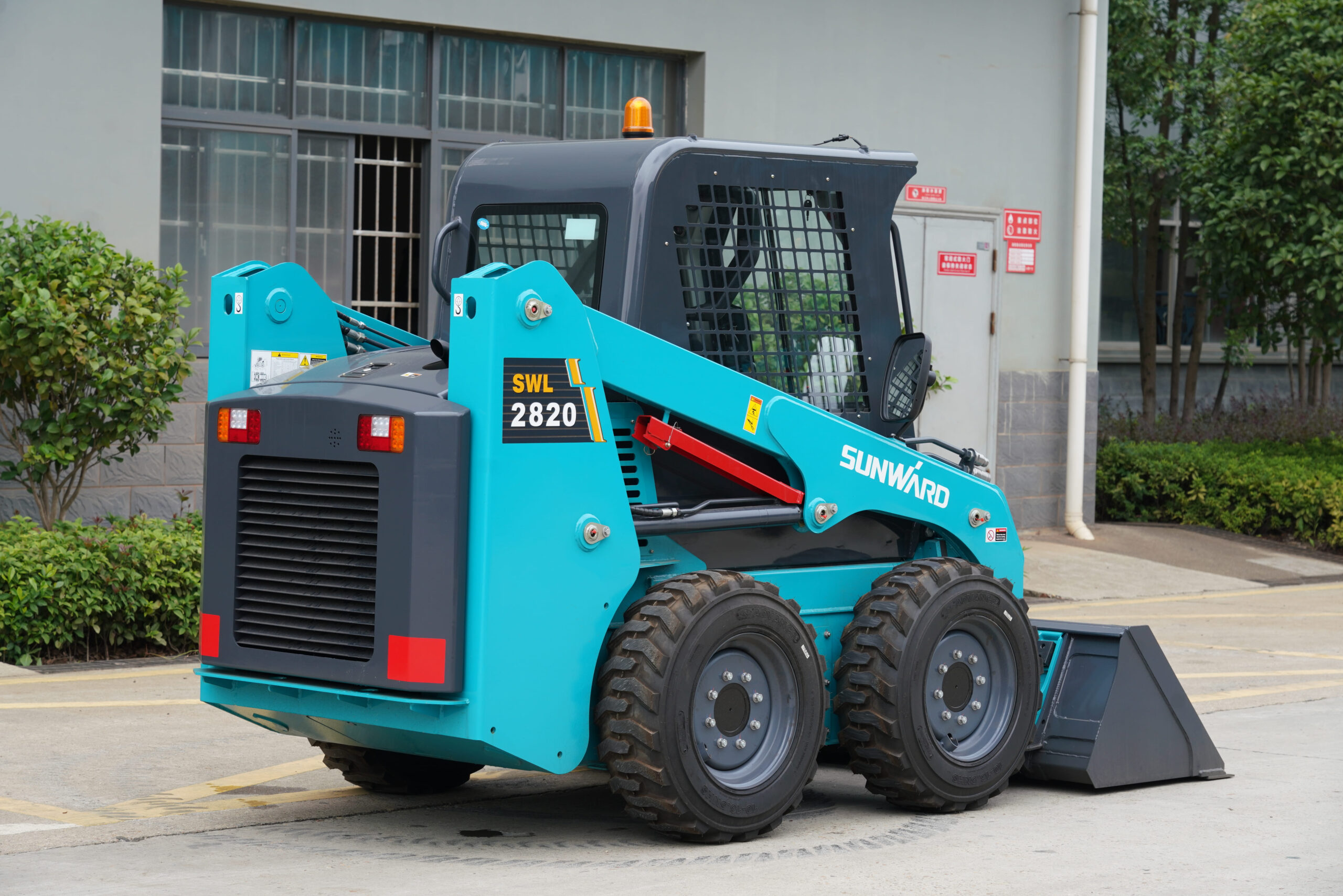

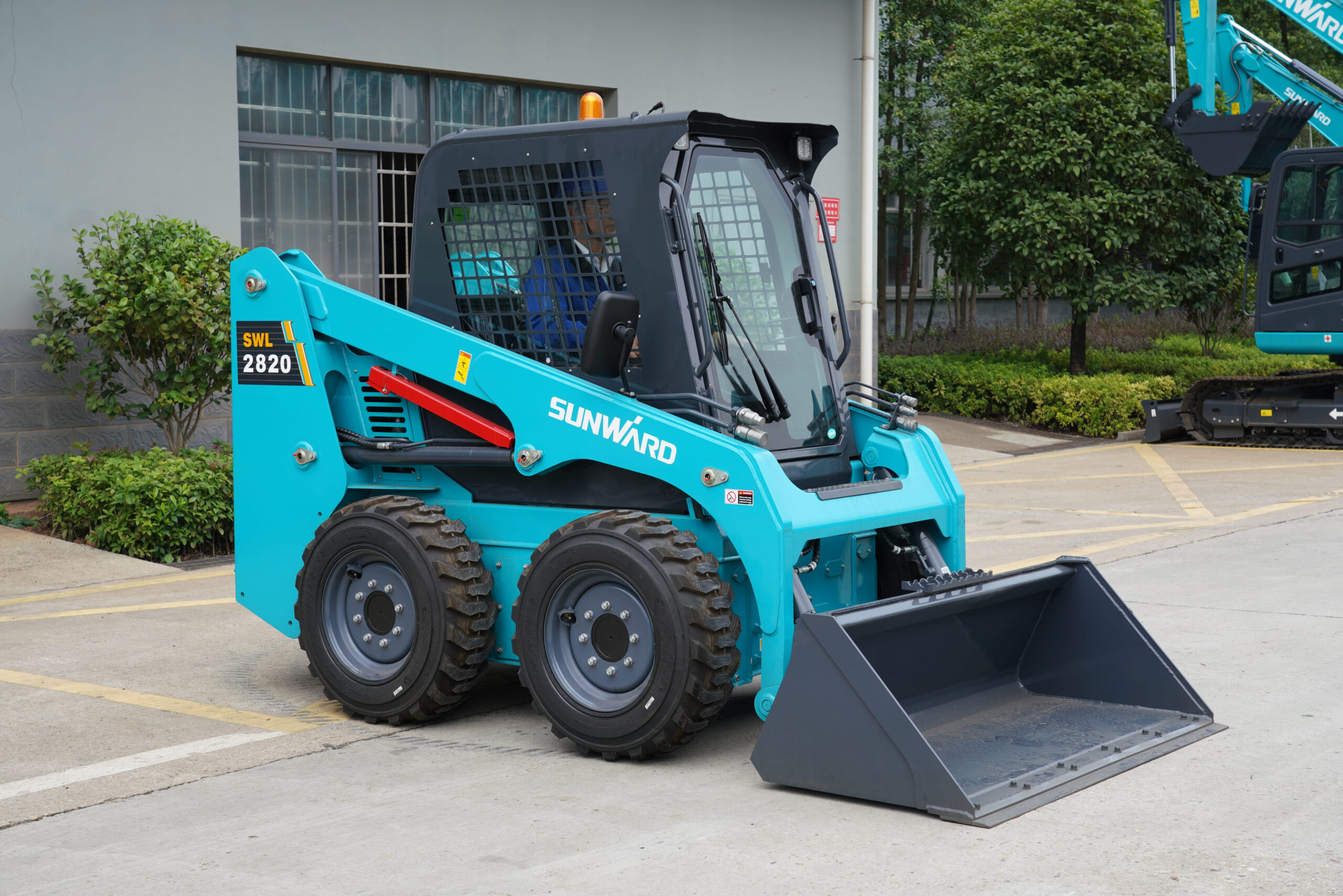

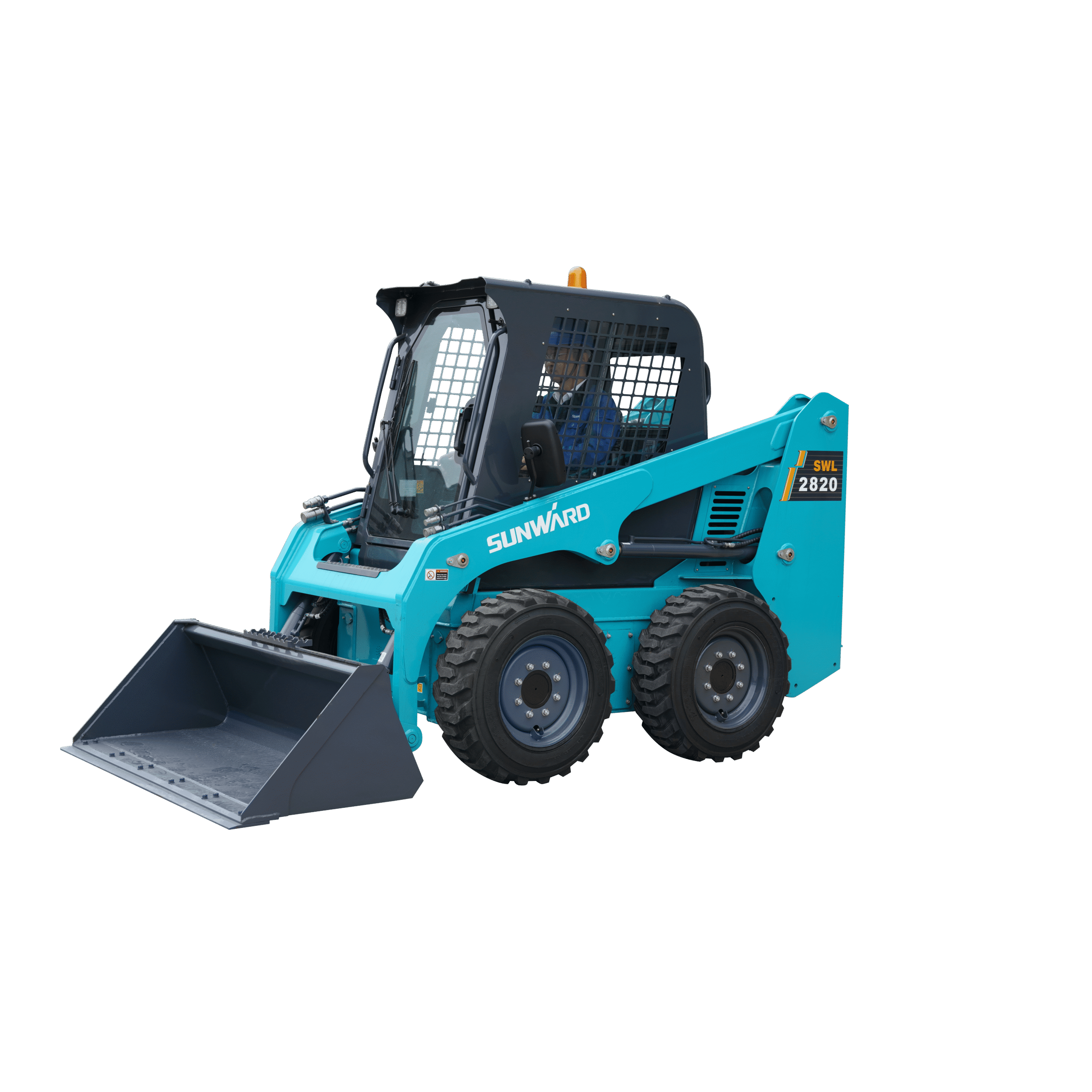

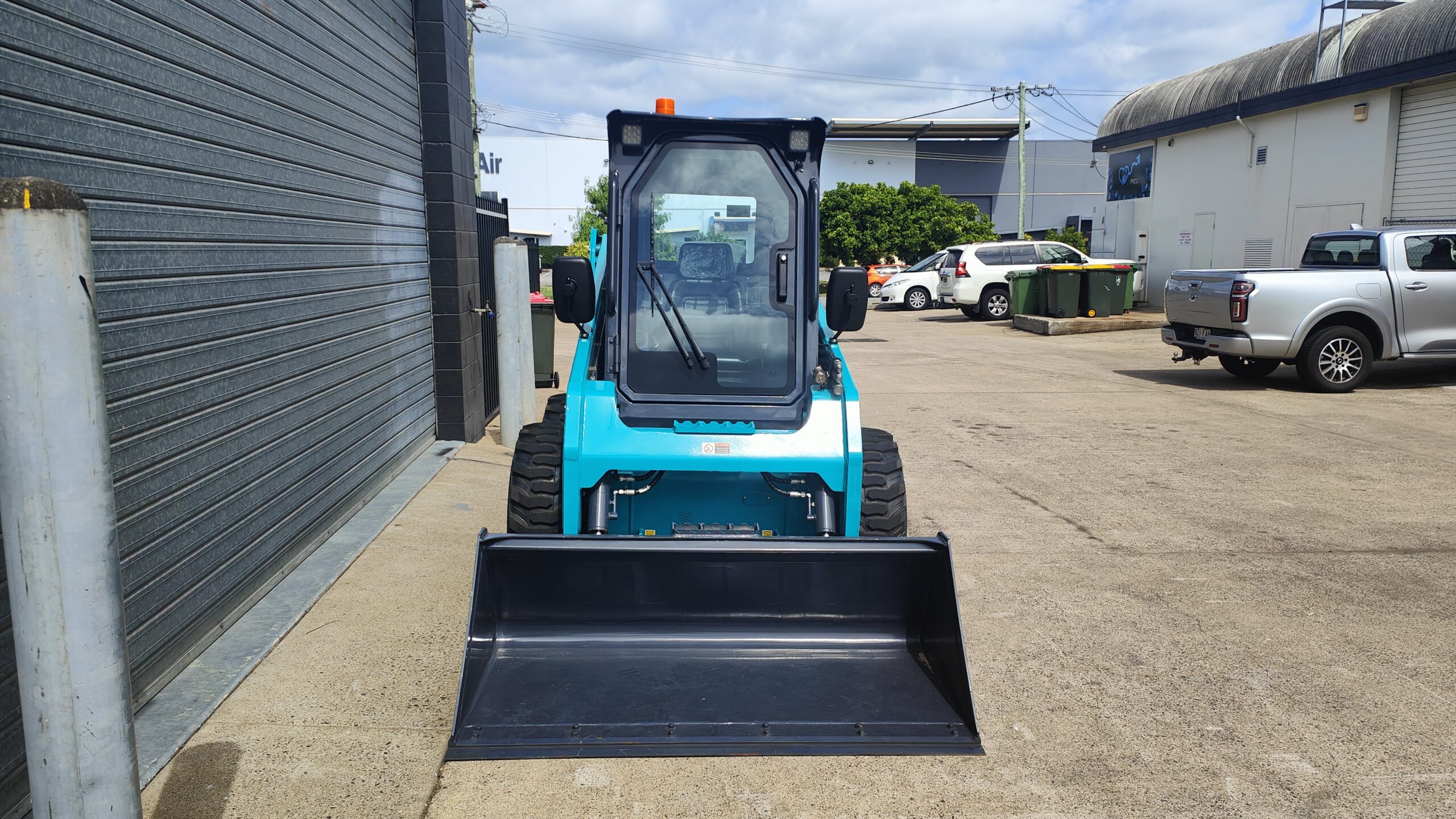

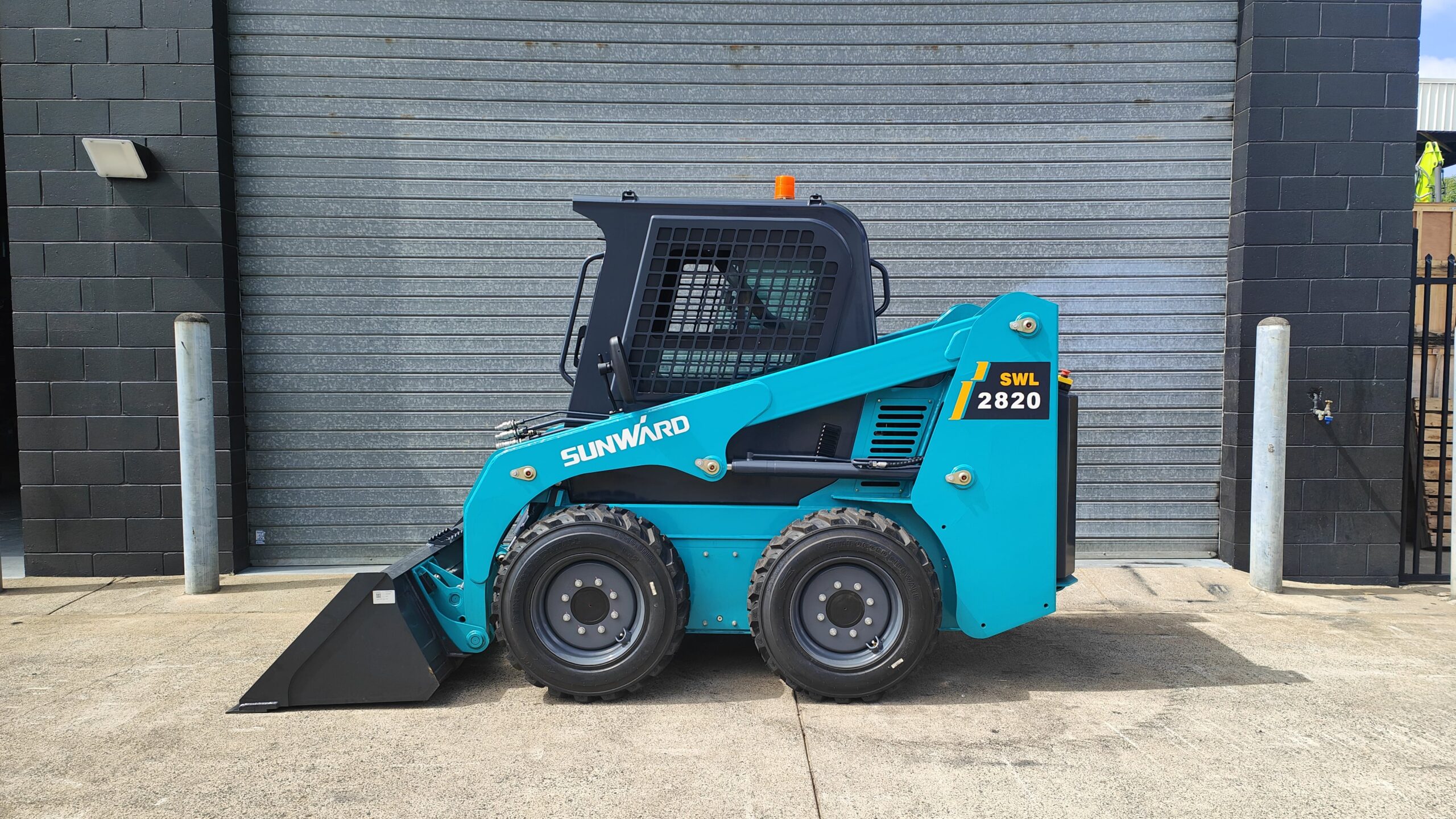

SWL2820 Skid Steer Loader

Need for a compact and versatile skid-steer loader with good lift capacity and plenty of power?
The Sunward SWL 2820 skid steer loader is highly versatile and compact enough to be easily maneuverable in small spaces. Despite its compact size, you will be impressed by the great breakout force and huge lift capacity.

The Sunward SWL 2820 skid steer loader is highly versatile and compact enough to be easily maneuverable in small spaces. Despite its compact size, you will be impressed by the great breakout force and huge lift capacity.

The powerful Kubota engine offers performance, exceptional reliability, long service life and complies with the European Union’s Stage V emission requirements. Maintenance and service are also easily accessible.

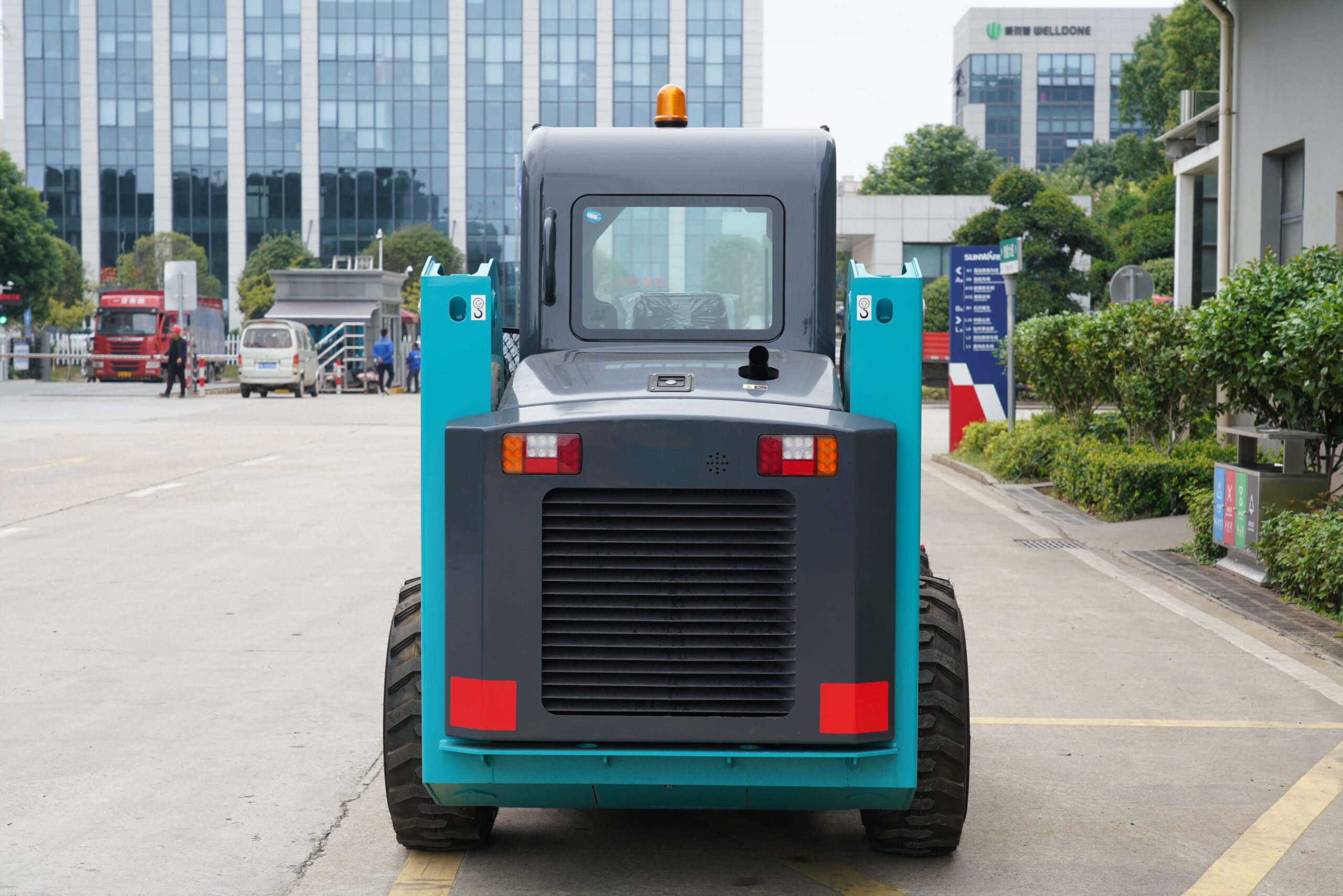

Daily maintenance is very easy since service checkpoints and cooling system components are accessible at ground level from the rear door. When it comes to service, major components are also easily and quickly accessible by tilting the ROPS/FOPS cab.

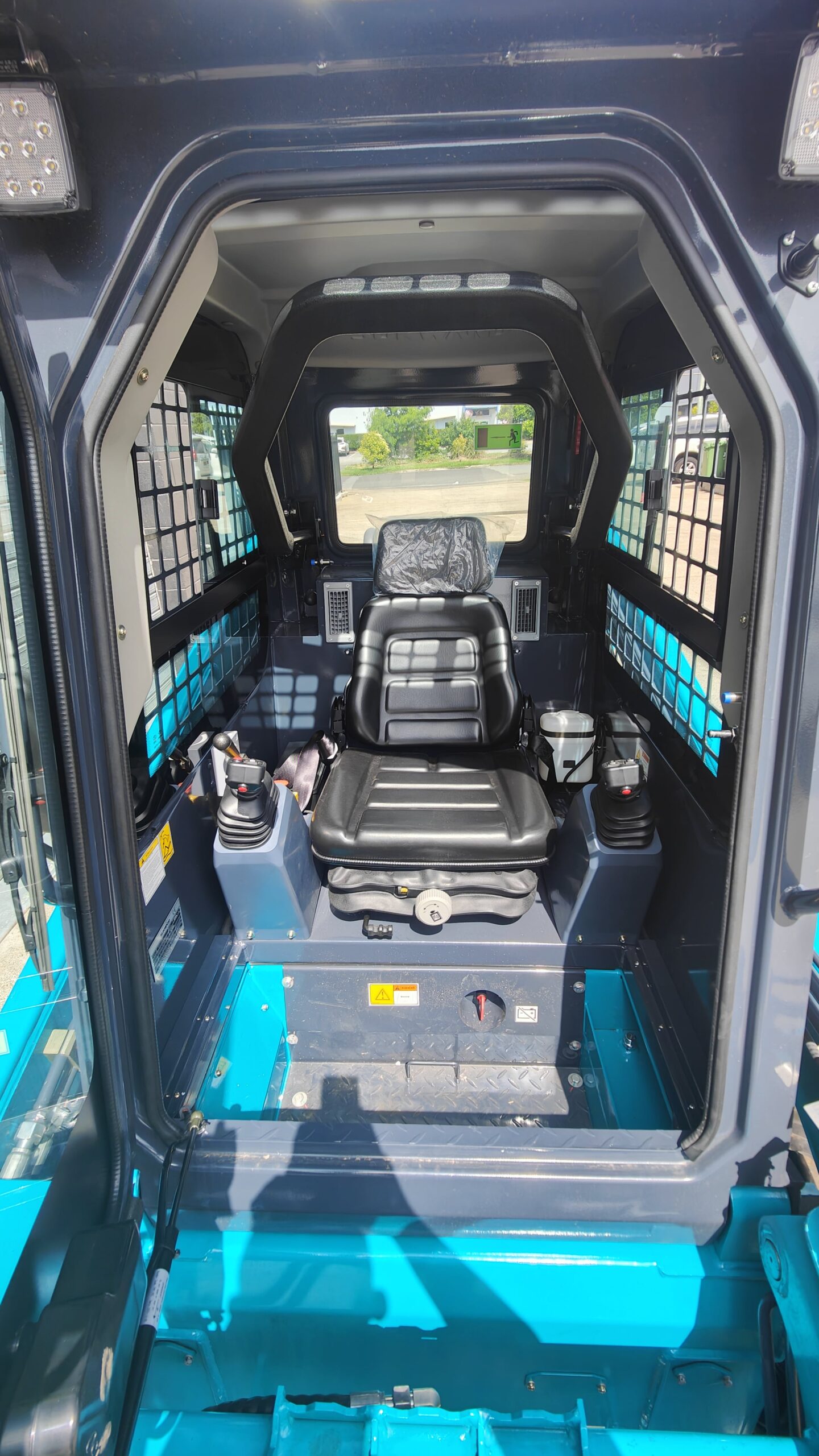

When it comes to comfort, the SWL 2820 offers a spacious cab with a wide entrance, a comfortable seat, ergonomic controls, and excellent all-around visibility.

Last but not least, safety is not at rest thanks to the ROPS/FOPS cab coupled with the excellent visibility and great stability of the machine.

Rated operating capacity: 750 kg
Tipping load: 4 400 kg
Rated power output: 48.6 kW
Operating weight: 2 830 kg
Lift height: 2 320 mm
Breakout force (bucket): 2 000 kg
[product_pdf_link]
[youtube_url_link]
Operating Weight
2800 kg
Rated operating capacity
740 kg
Lift Height
2300 mm

ADVANTAGE INTRODUCTION

Strong power, high reliability, low noise, energy saving, and environmental protection.

Independent research and development of arc lifting mechanism, simple structure, strong bearing capacity, good reliability.

ISO pilot operating mode with easy operation, fiexible control and good inching performance.

International universal quick-change device with easy switching of cleaning, milling, snow-blowing, and other accessories.

Standard bucket fioating and automatic leveling function that greatly improves the work efficiency.

All-around maintenance space that ensures easy access to the parts to be maintained and facilitates maintenance.

  • DIMENSIONS & WEIGHT
  • ENGINE
  • PERFORMANCE
Length without bucket
2604mm
Length with standard bucket
3318mm
Width without bucket
1293mm
Height to top of ROPS
2014mm
Ground clearance
220mm
Turning radius from center (standard bucket)
1953mm
Model
KUBOTA V2403-DI-E3B
Emission rating
EU Stage III
Rated power output
48.06kW
Rated operating capacity
750 kg
Tipping Load
2000 kg
Bucket breakout force (standard bucket)
1900kg
Boom breakout force
2430kg
Travel speed
13km/h
