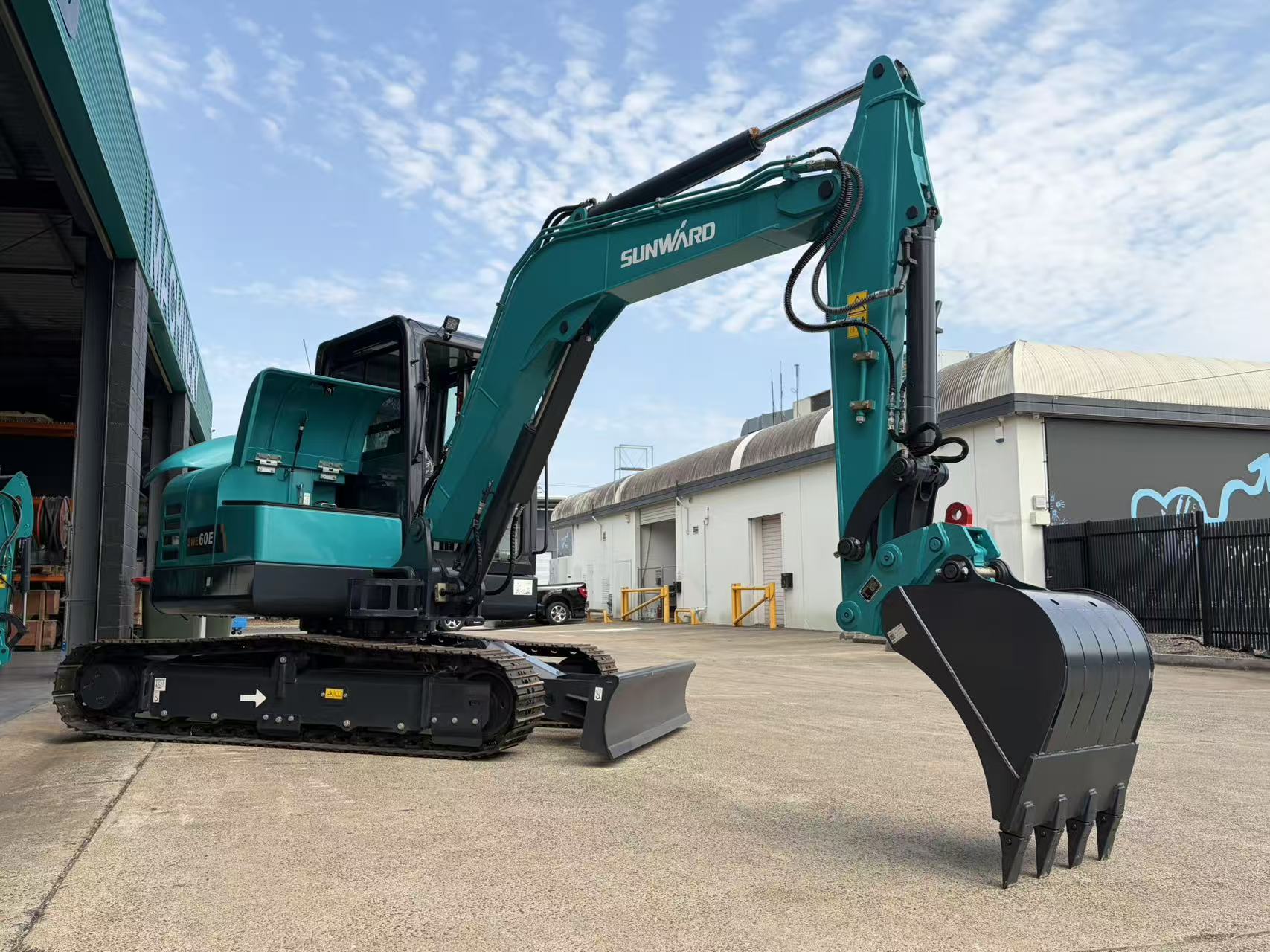

SWE60UF Small Excavator

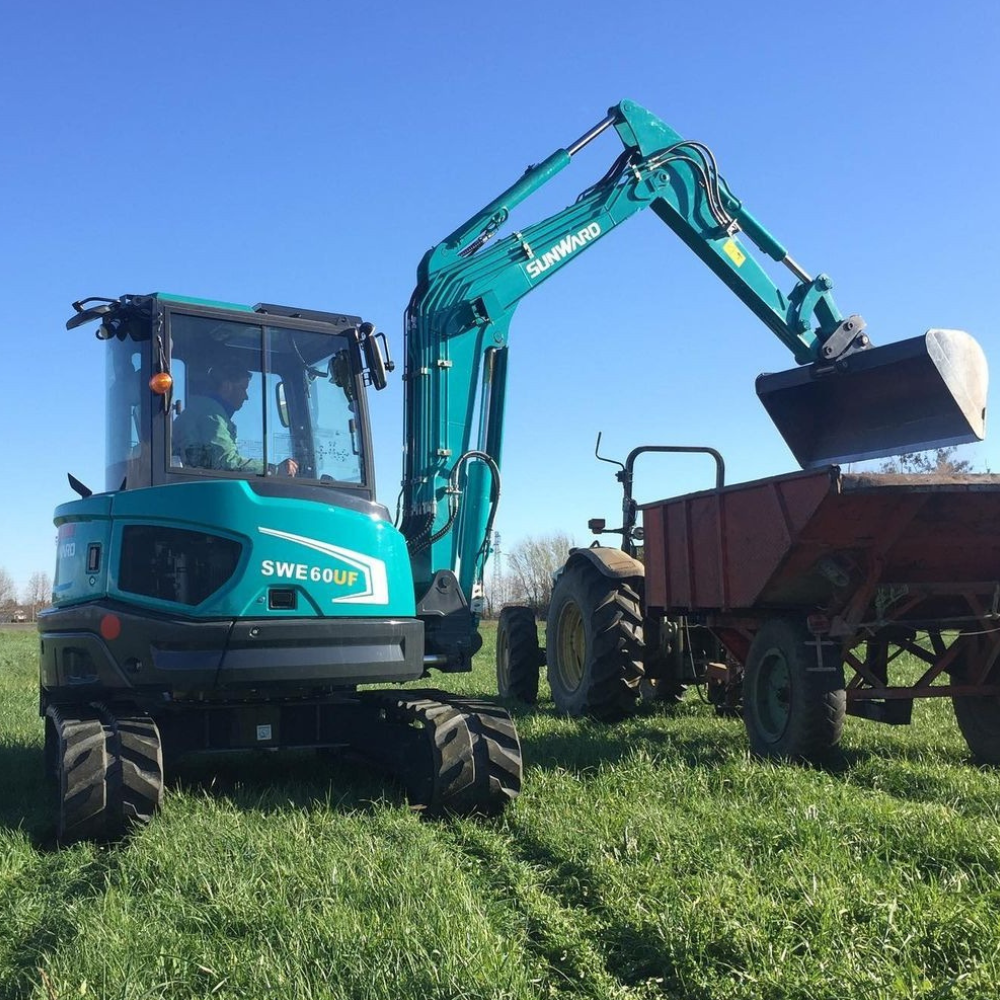

The Sunward SWE 60UF is a compact excavator featuring a zero-tail swing. Thanks to its design, the SWE 60UF can offer great power at a reduced footprint, giving it the ability to fit into smaller spaces than other similar products. Combining both power and precision, the SWE 60UF offers also a comfortable and safe cab. Last but not least, its exceptional digging reach performance means no worksite is off-limits.

The Sunward SWE 60UF is a compact excavator featuring a zero-tail swing. Thanks to its design, the SWE 60UF can offer great power at a reduced footprint, giving it the ability to fit into smaller spaces than other similar products. It combines the power of the Kubota V2607-DI-T engine, delivering 36.5 kW, with incredible precision thanks to the dual proportional joysticks and the perfectly fitted hydraulic flow. Its exceptional digging reach performance means no worksite is off-limits. Of course, because we know that safety and comfort should go hand-in-hand, the SWE 60UF keeps you safe and provides every comfort in all working conditions. Last but not least, in the Sunward tradition to always offer the best value for money, the SWE 60UF is no exception since it offers many features and up to 5 years of warranty as standard, at the right price.

Emission rating: Stage 3
Operating weight 5 700 – 5 770 kg
Power output 36.5 kW
Max. digging depth 3 710 mm
Width 1 980 mm
[product_pdf_link]
[youtube_url_link]
Bucket Capacity
0.15
Engine Power
30 kW
Operating Weight
5500 kg

ADVANTAGE INTRODUCTION

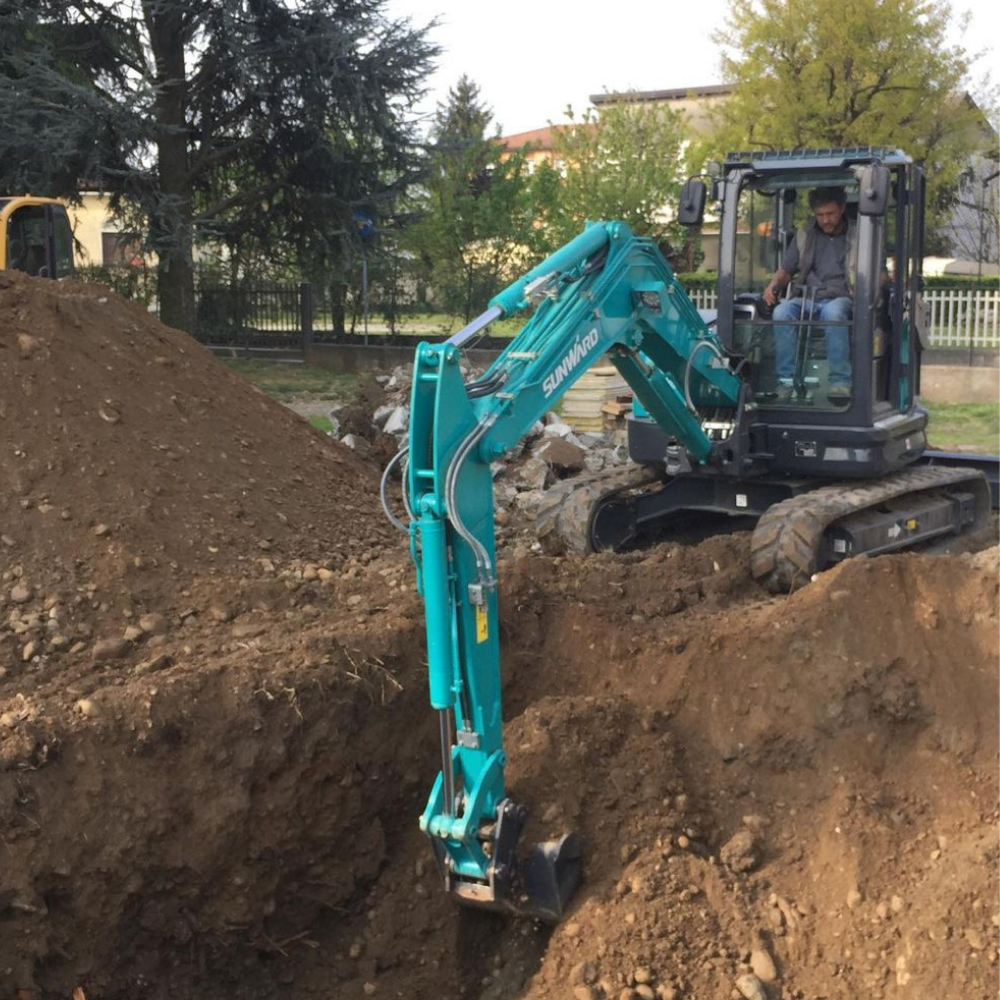

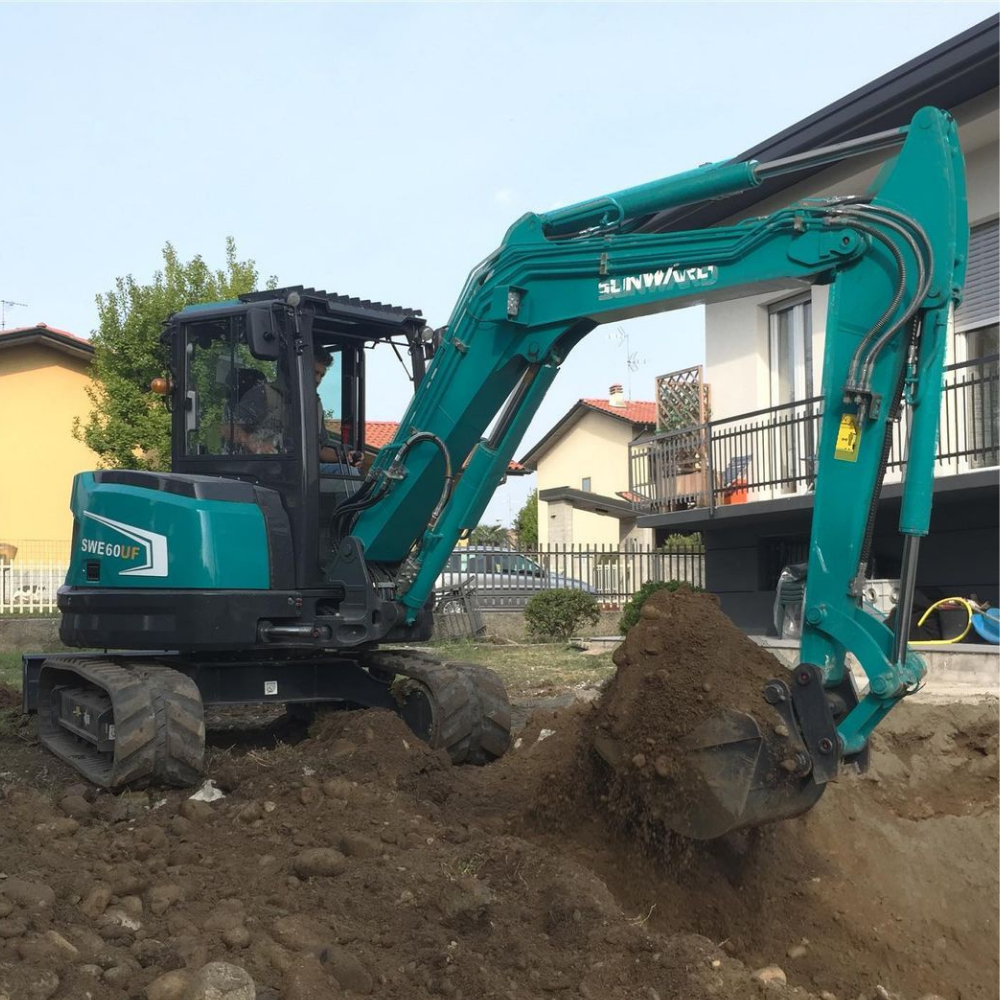

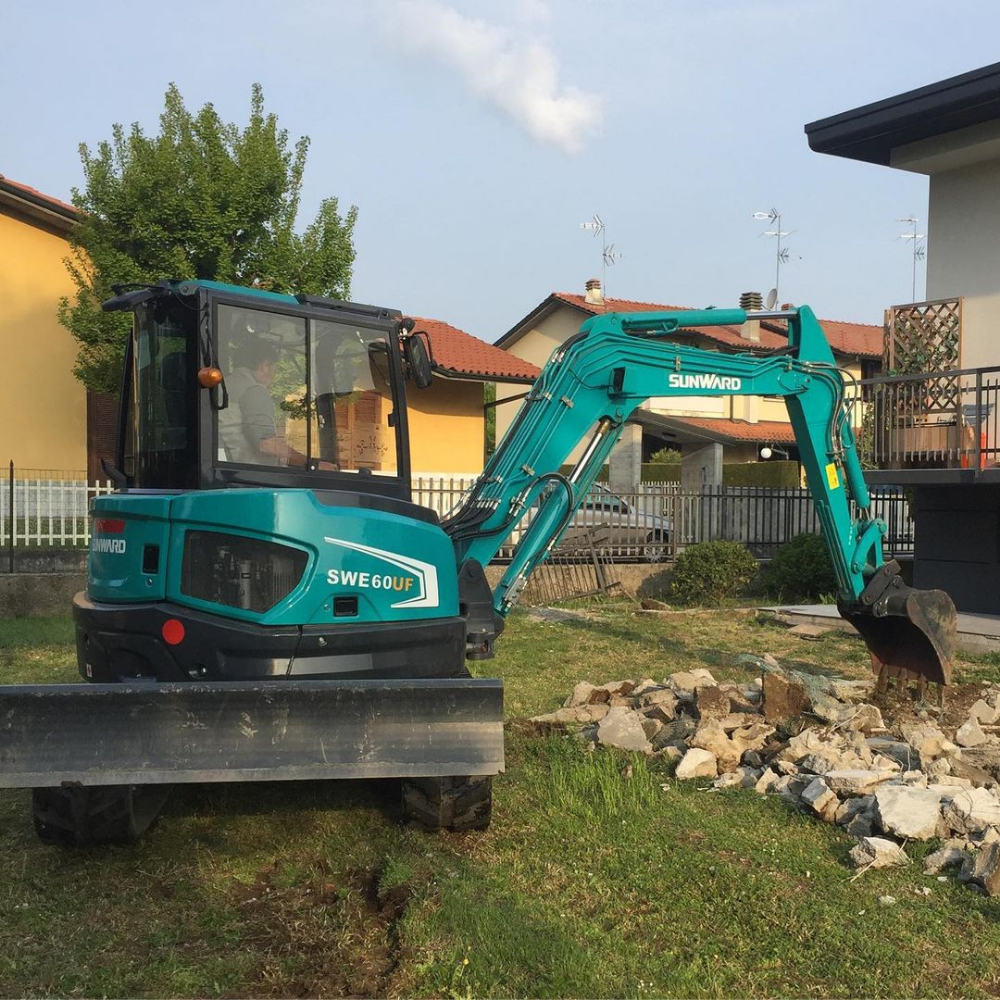

The Tail-less structure is more flexible. With the moving arm deflection function, it could be used for the works near the walls to improve construction efficiency

High-performance power is provided to match with the new load- sensitive system. The right electric proportional auxiliary control is provided for more precise control coordination.

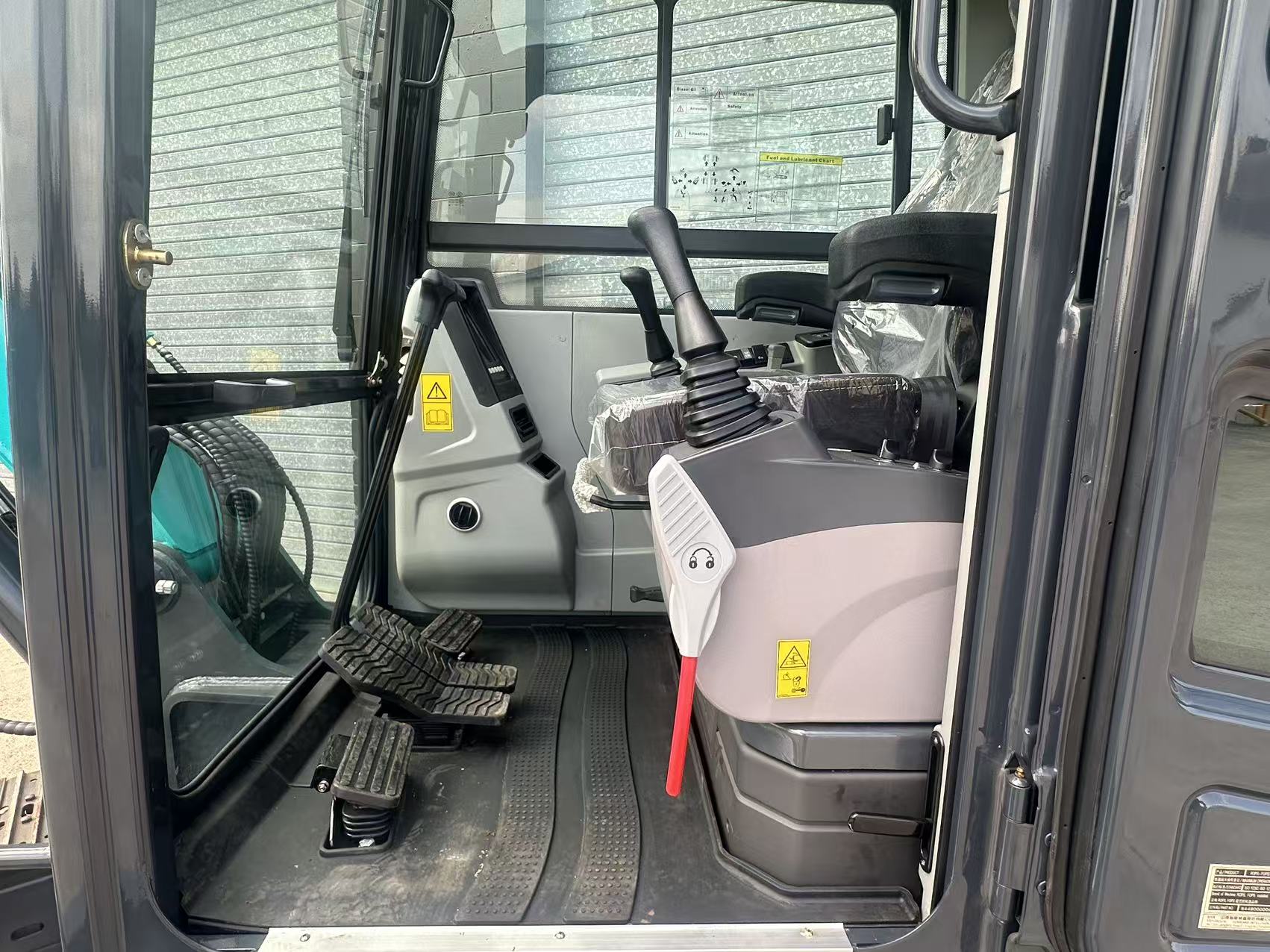

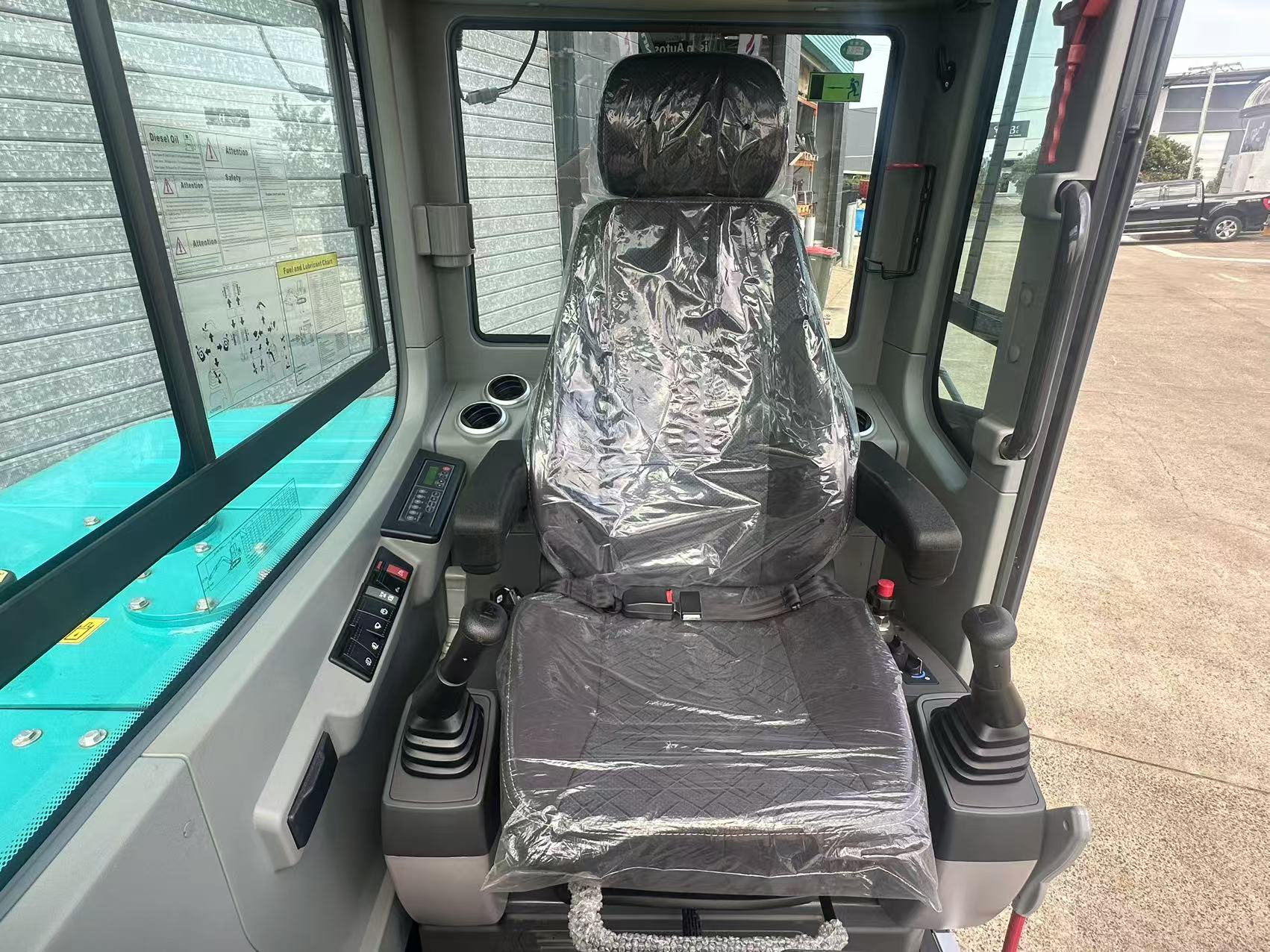

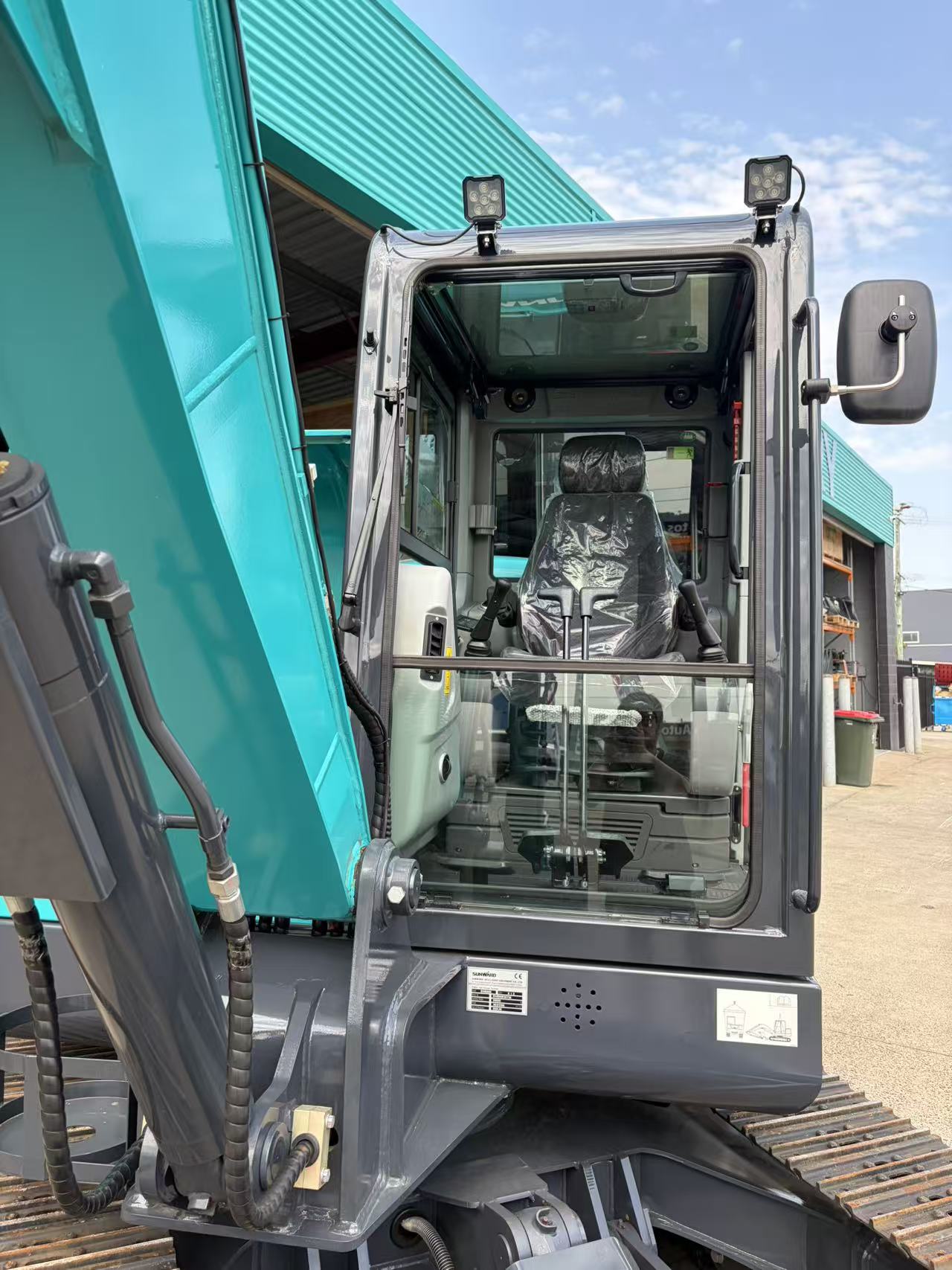

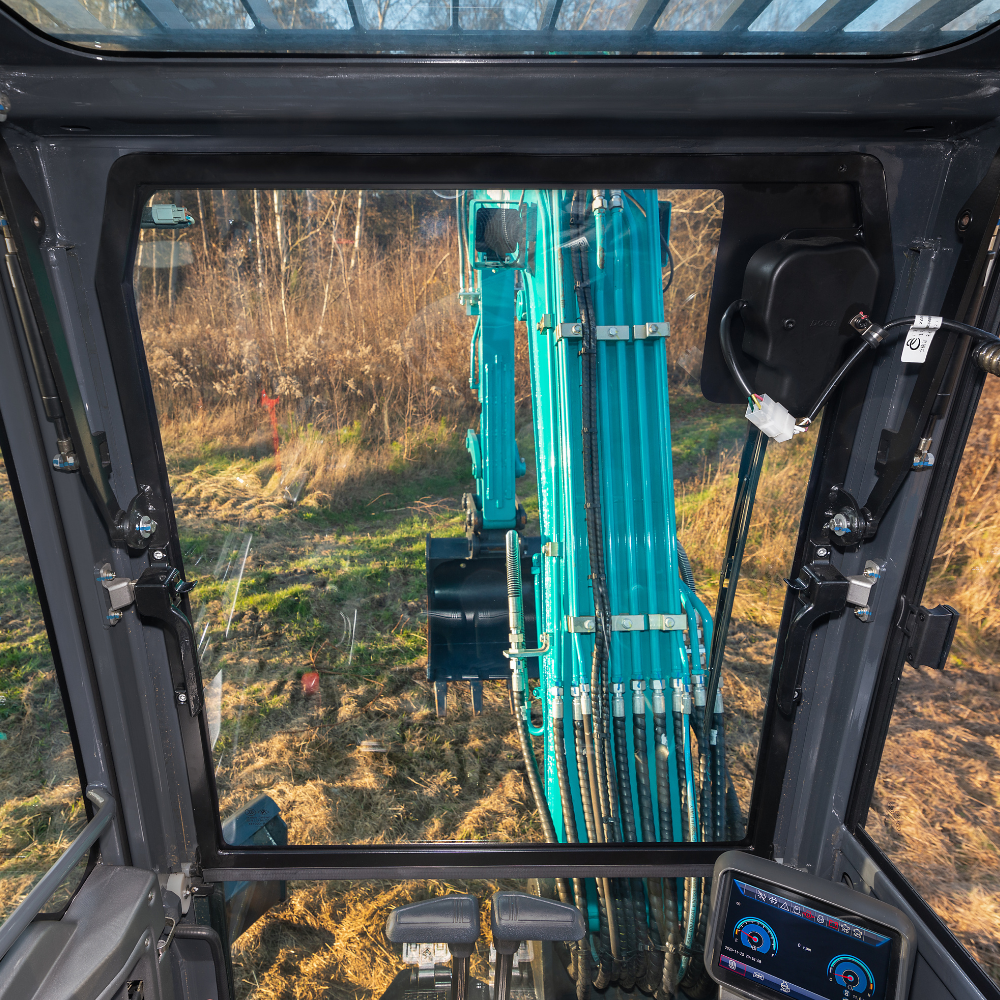

The driver cabin has been optimized ergonomically to integrate operator desk, and 7-inch touch screen, to learn about the status of the machine easily.

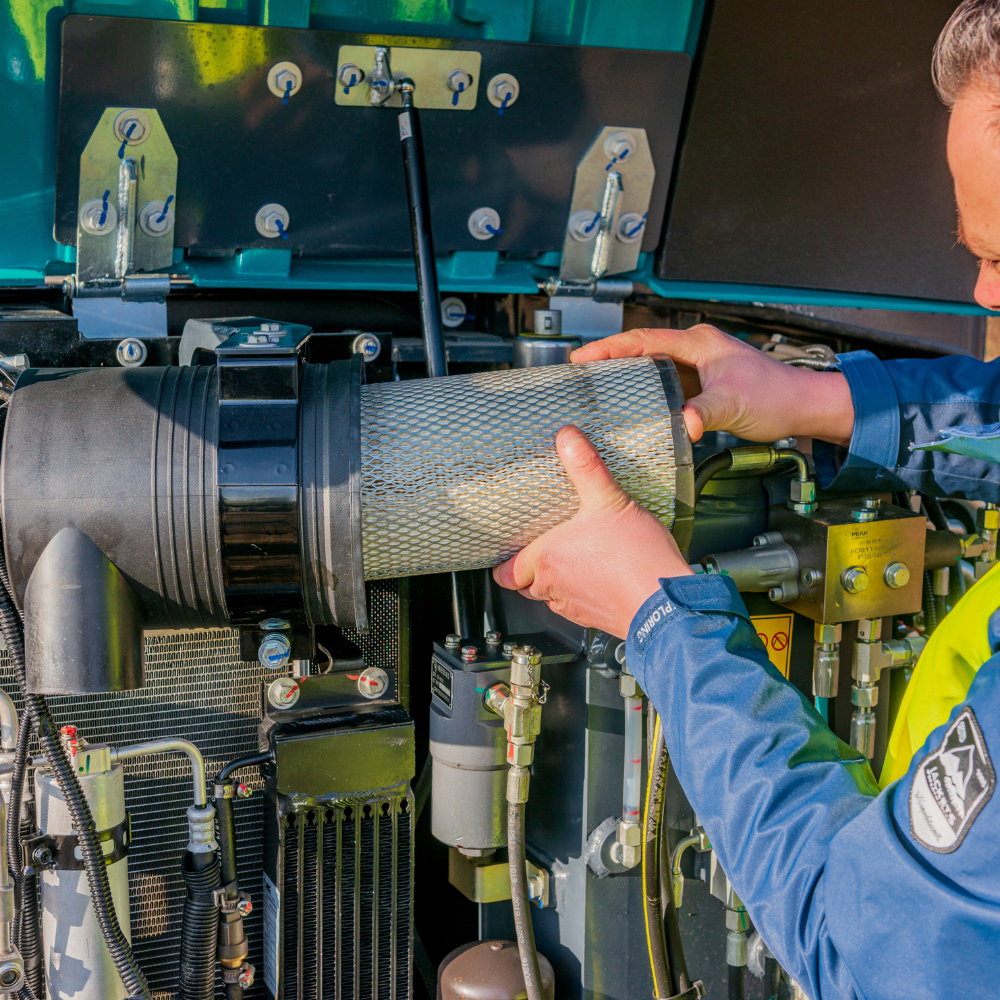

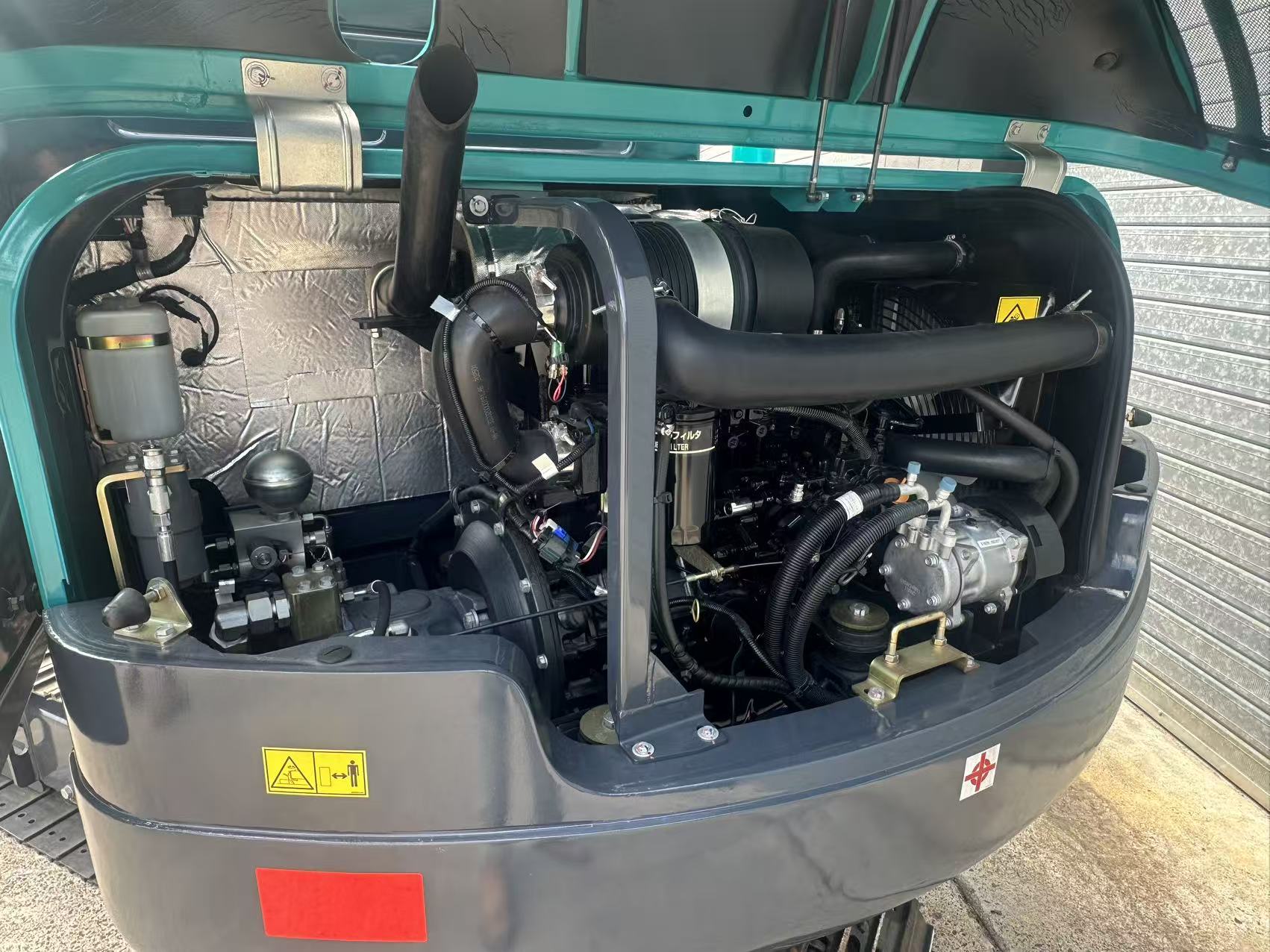

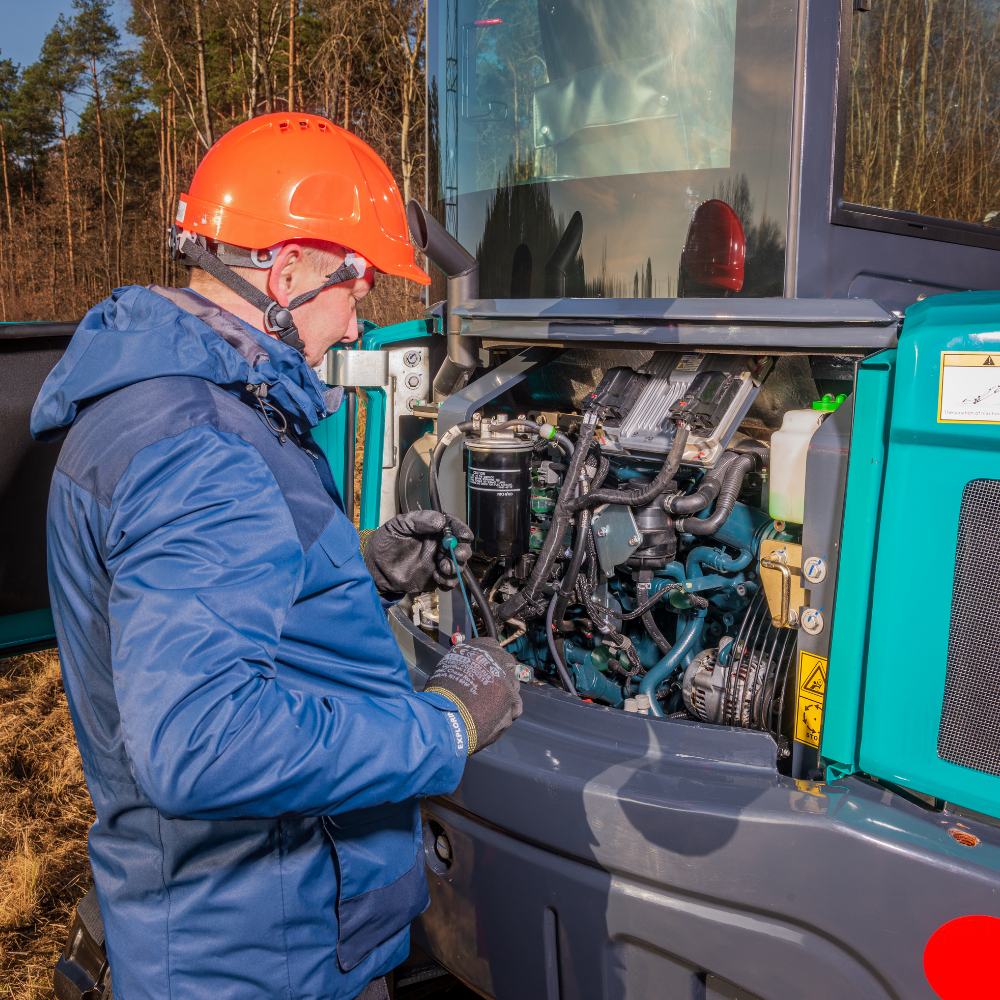

Detachable covering parts, full-open hood on the right side, and neat pipeline arrangement could facilitate any maintenance operations.

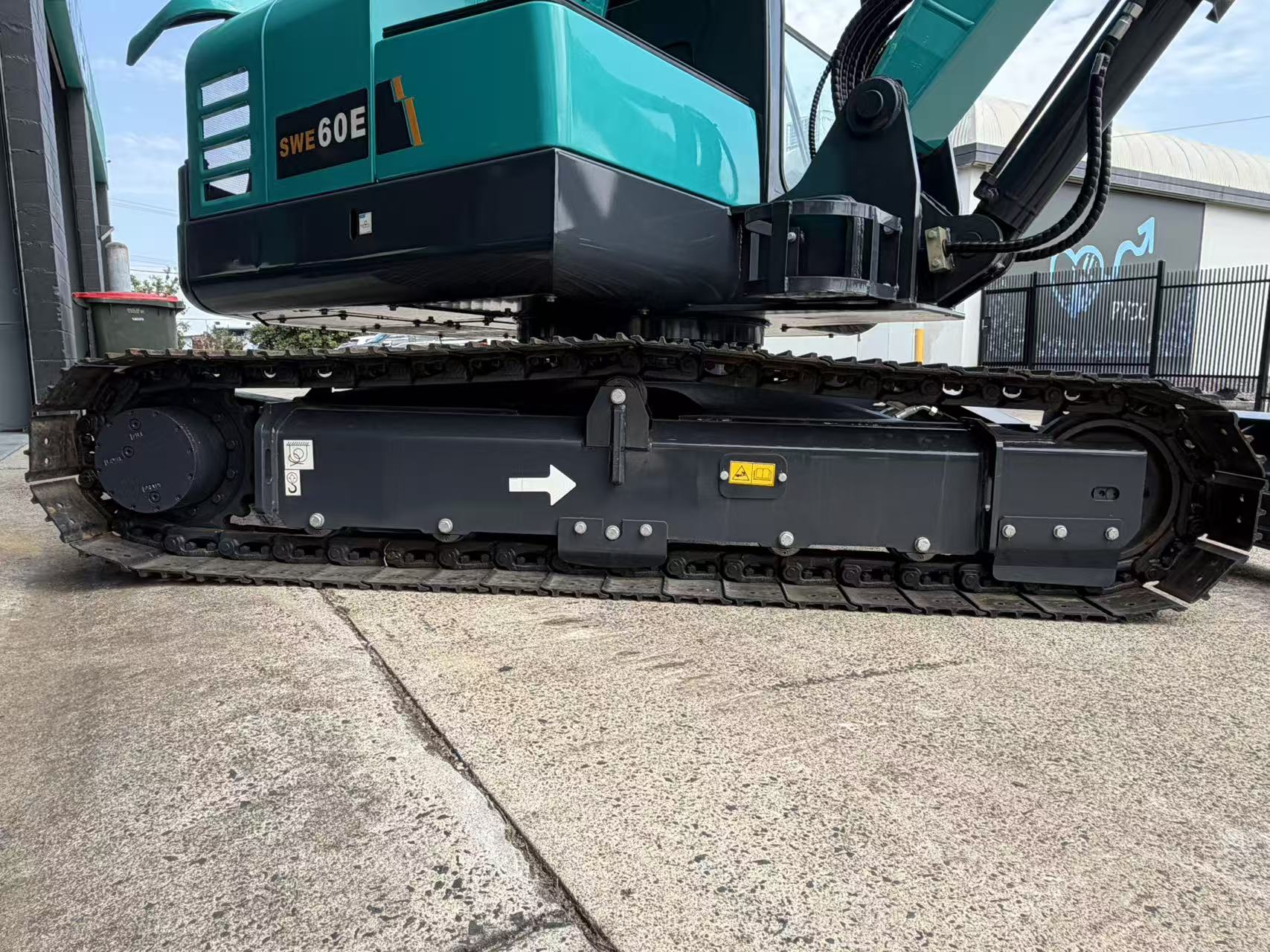

The size of the lower vehicle is updated by high torque traveling motor to ensure the stability and reliability of the whole machine.

  • SWE60UF Technical Parameters
  • Load Capability
Overall dimension (L x W x H) mm 5500X1980X2550
A Length to center of rollers mm 1965
B Total track length mm 2495
C Ground clearance of platform mm 630
D Platform tail slewing radius mm 1050
E Chassis width mm 1960
Dimensions F Track width mm 400
G Chassis clearance from the ground mm 318
H Track height mm 594
I Total length mm 5498
J Cab roof height mm 2550
K Upper-carriage width mm 1830
a Max. cutting height mm 5615
b Max. unloading height mm 3950
c Max. digging depth mm 3710
d Max. vertical digging depth mm 3050
Working e Max. digging reach mm 6230
range f Max. digging reach at ground level mm 6105
g Max. lift height of the dozer blade mm 455
h Max. digging depth of the dozer blade mm 415
i Swing radius (min.) mm 2640
Dozer blade length x width mm 1960X340
Machine with rubber track kg 5630
weight with steel track kg 5700
Standard bucket capacity m3 0.18
Digging force (bucket) (ISO) kN 46.8
Digging force (arm) (ISO) kN 31.1
Maximum traction force kN 48.9
Slew angle (boom) o R50/L70
Traveling speed (Max/Min) km/h 4.07/2.43
Gradeability o 35
Ground pressure kPa 31.5
Swing speed rpm 9.4
Brand KUBOTA
Engine Model V2607-DI-TE3B
Type 4-cylinder and 4-stroke water cooling
Displacement L 2.615
Power/speed (gross/net) kW/rpm 36.5/2000 35/2000
Fuel tank capacity L 70
Primary Type 2 variable plunger pumps and 1 gear
pump Displacement L/min 2x59+42
Pressure of main relief valve MPa 2x24.5 + 21
Hydraulic tank capacity L 70
Lift Point HeightLift Point Radius(MAX)Lift Point Radius(5.0m)Lift Point Radius(4.0m)Lift Point Radius(3.0m)
Over-front(kg)Over-side(kg)Over-front(kg)Over-side(kg)Over-front(kg)Over-side(kg)Over-front(kg)Over-side(kg)
4.0885.40*837.50*842.30*861.40*
3.0866.20*581.70885.40*871.00*
2.0832.70*486.80981.10*697.201316.10*1301.70*
1.0890.20*449.70918.90*474.501115.10*631.201703.70*969.50
0.01186.90*585.801196.40*614.701483.60*750.901971.70*1043.80
-1.01172.50*614.701182.10*639.501617.60*837.50
-2.0713.10*833.40713.10*833.401397.40*915.90
