| Emission rating: | Stage 3 |
| Operating weight | 5 800 kg |
| Power output | 36.9 kW |
| Max. digging depth | 3 780 mm |
| Width | 2000 mm |
| Overall dimension (L x W x H) | mm | 5915X2000X2570 | ||
| A | Length to center of rollers | mm | 1965 | |
| B | Total track length | mm | 2495 | |
| C | Ground clearance of platform | mm | 630 | |
| D | Platform tail slewing radius | mm | 1050 | |
| E | Chassis width | mm | 1960 | |
| Dimensions | F | Track width | mm | 400 |
| G | Chassis clearance from the ground | mm | 318 | |
| H | Track height | mm | 594 | |
| I | Total length | mm | 5498 | |
| J | Cab roof height | mm | 2550 | |
| K | Upper-carriage width | mm | 1830 | |
| a | Max. cutting height | mm | 5615 | |
| b | Max. unloading height | mm | 3950 | |
| c | Max. digging depth | mm | 3710 | |
| d | Max. vertical digging depth | mm | 3050 | |
| Working | e | Max. digging reach | mm | 6230 |
| range | f | Max. digging reach at ground level | mm | 6105 |
| g | Max. lift height of the dozer blade | mm | 455 | |
| h | Max. digging depth of the dozer blade | mm | 415 | |
| i | Swing radius (min.) | mm | 2640 | |
| Dozer blade length x width | mm | 1960X340 | ||
| Machine | with rubber track | kg | 5630 | |
| weight | with steel track | kg | 5700 | |
| Standard bucket capacity | m3 | 0.18 | ||
| Digging force (bucket) (ISO) | kN | 46.8 | ||
| Digging force (arm) (ISO) | kN | 31.1 | ||
| Maximum traction force | kN | 48.9 | ||
| Slew angle (boom) | o | R50/L70 | ||
| Traveling speed (Max/Min) | km/h | 4.07/2.43 | ||
| Gradeability | o | 35 | ||
| Ground pressure | kPa | 31.5 | ||
| Swing speed | rpm | 9.4 | ||
| Brand | KUBOTA | |||

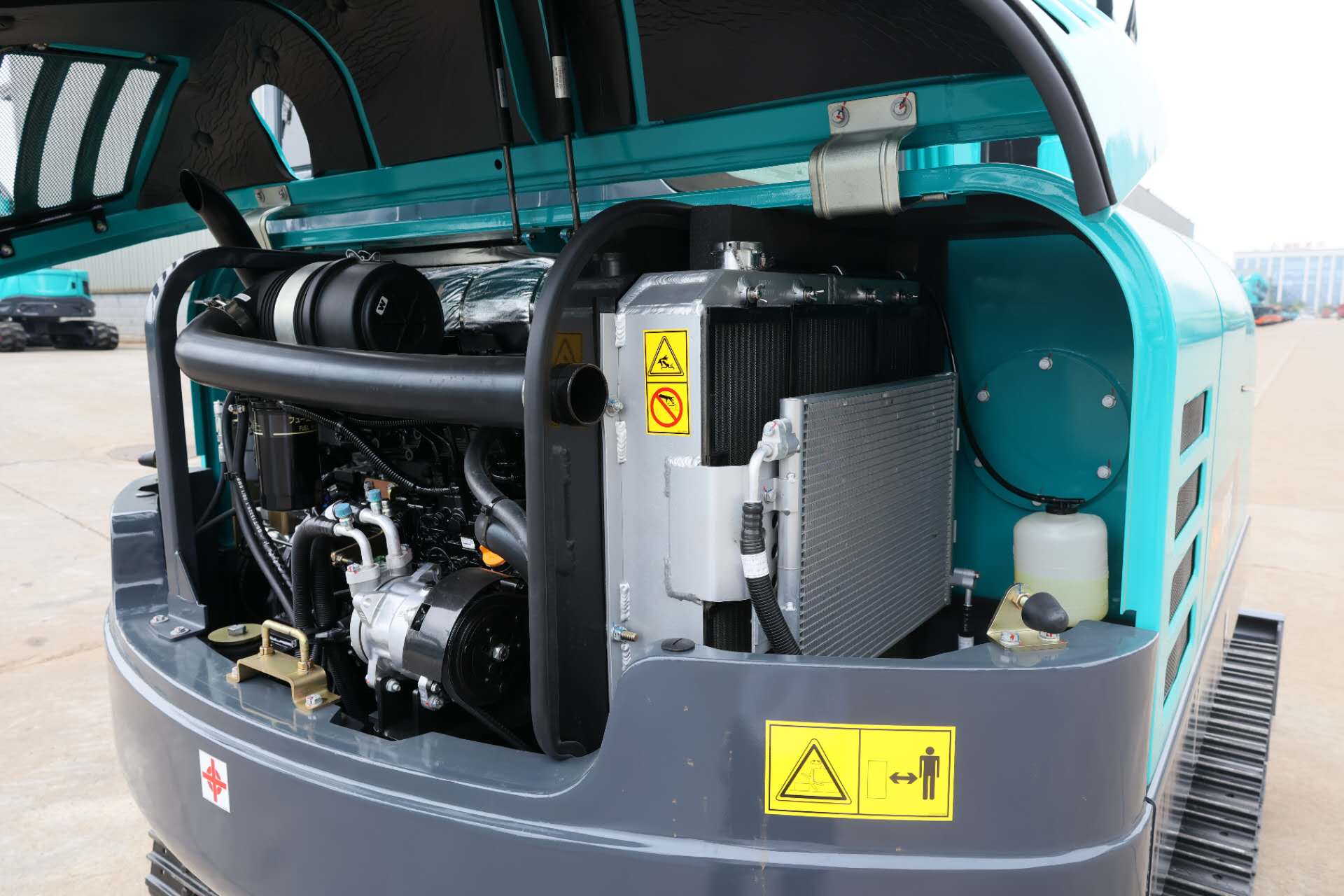

| Engine | Model | V2607-DI-TE3B | ||
| Type | 4-cylinder and 4-stroke water cooling | |||
| Displacement | L | 2.615 | ||
| Power/speed (gross/net) | kW/rpm | 36.5/2000 35/2000 | ||
| Fuel tank capacity | L | 70 | ||
| Primary | Type | 2 variable plunger pumps and 1 gear | ||
| pump | Displacement | L/min | 2x59+42 | |
| Pressure of main relief valve | MPa | 2x24.5 + 21 | ||
| Hydraulic tank capacity | L | 70 | ||
| Lift Point Height | Lift Point Radius(MAX) | Lift Point Radius(5.0m) | Lift Point Radius(4.0m) | Lift Point Radius(3.0m) | ||||
| Over-front(kg) | Over-side(kg) | Over-front(kg) | Over-side(kg) | Over-front(kg) | Over-side(kg) | Over-front(kg) | Over-side(kg) | |
| 4.0 | 885.40* | 837.50* | — | — | 842.30* | 861.40* | — | 一 |
| 3.0 | 866.20* | 581.70 | 一 | 一 | 885.40* | 871.00* | — | — |
| 2.0 | 832.70* | 486.80 | — | — | 981.10* | 697.20 | 1316.10* | 1301.70* |
| 1.0 | 890.20* | 449.70 | 918.90* | 474.50 | 1115.10* | 631.20 | 1703.70* | 969.50 |
| 0.0 | 1186.90* | 585.80 | 1196.40* | 614.70 | 1483.60* | 750.90 | 1971.70* | 1043.80 |
| -1.0 | 1172.50* | 614.70 | — | — | 1182.10* | 639.50 | 1617.60* | 837.50 |
| -2.0 | 713.10* | 833.40 | — | — | 713.10* | 833.40 | 1397.40* | 915.90 |
